Weaponizing unicode case folding and URL inflation to create a new XS-Search oracle

a novel URL inflation gadget — branch-dependent unicode case folding pushes a redirect past chromium's 2 MiB URL limit, turning a query-normalization mistake into a clean cross-origin search oracle.

webxs-searchbrowsersjavascriptunicode
On this page

XS-Search oracles utilize different methods to measure a HIT / MISS depending on what the server returns alongside the mitigations in place, such as security headers like Content-Security-Policy or X-Frame-Options. URL Inflation attacks improve on this by using a browser constraint as a signal, but this requires the server to naturally redirect to different length paths, which may not always be present. This writeup will discuss about a novel but slightly rare gadget for URL inflation attacks which is unicode case folding, and how it can be weaponized to turn a simple mistake into a clean XS-Search oracle.

How does this XS-Search oracle differ from other XS-Leaks techniques?

Most XS-Search oracles rely on timing differences, cache behaviour, or resource loading side-effects. These oracles are more likely than not, really noisy and potentially unreliable if the correct security headers are in place (for example: COOP: same-origin + X-Frame-Options: Deny / CSP frame-ancestors 'self' kills frame counting; Network Partitioning / Cache-Control: no-cache kills cache-probing attacks.)

This oracle is unique in the sense that it utilizes Chromium’s 2 MiB URL length limit (exactly 2,097,152 bytes) alongside branch-dependent Unicode normalization to create a highly reliable XS-Search oracle if the conditions are met. This allows for side channel information leakage from improperly handling query strings.

One thing to note is that this oracle does not work in Firefox, as instead of redirecting to about:blank#blocked or about:blank, it simply refuses to attempt to navigate and will throw a DOMException error. Therefore, it is recommended to use a Chromium-based browser for these tests. (Since Microsoft Edge is a Chromium-based browser, it is also vulnerable to this XS-Search.)

Pre-requisites

1) A branch-dependent Unicode normalization path, for example:

const stuff = ['secret', 'secrets', 'token']
app.get('/search', (req, res) => {
  const search = req.query.q; // /search?q=secret
  let queryString = req.originalUrl.split('?')[1] ? `?${req.originalUrl.split('?')[1]}` : '';

  try {
    queryString = decodeURIComponent(queryString); // URL decode, since browsers send params URLencoded!
  } catch (e) {
    res.status(400).send('Malformed Query String');
    return;
  }
  // Note: browsers canonicalize the URL into UTF-8 bytes (percent-encoding non-ASCII) before navigating.
  // encodeURIComponent is not needed for percent-encoding non-ASCII, but is still recommended as it prevents structure injection.
  if (stuff.includes(search)) {
    res.redirect('/result' + queryString.toLowerCase()); // normalize everything
  } else {
    res.redirect('/404' + queryString);
  }
});

In this example, one outcome uses the .toLowerCase(), which means unicode characters like the capital Turkish I (İ) will split into i̇, which, when URL-encoded, expands the length of the URL by 1 byte, pushing it closer to the 2 MiB limit that the Chromium browser enforces. (6 bytes as %C4%B0 → 7 bytes as i%CC%87) [Note: it does not need to be purely .toLowerCase(), .toUpperCase() also works with a different unicode character such as ʼn (U+0149), which uppercases to ʼN (6 bytes as %C5%89 → 7 bytes as %CA%BCN). However, it would be a weird implementation to do so.]

2) That branch-dependent Unicode normalization path will also need to URL-decode and then make the entire URL lowercased. If this is not met, and the implementation simply does res.redirect(req.originalUrl.toLowerCase());, it will not see any İ since it has already been URL-encoded by the browser before reaching the server.

How this XS-Search oracle works

The attacker crafts a URL with the URI fragment being junk and adds unicode characters which Unicode casefold upon uppercasing/lowercasing to the query parameters (if the normalization happens server-side), or, more rarely, to the URI fragment (if the normalization happens client-side via an HTML page).

When the attacker calls window.open() with this URL or makes an iframe (depending on the security headers imposed), it will hit the branch-dependent Unicode normalization path which determines whether the content in the URL will get normalized or be kept constant:

HIT path: The URL will be normalized and the total length of the URL will now be >2 MiB. This triggers Chromium’s maximum URL length limit and aborts the navigation, and the location will be in about:blank#blocked (direct navigation) or about:blank (for a server-side Location redirect), which we can measure since about:blank shares the same origin as the document that opened it. If we can access w.document, we know it is same-origin, which means it aborted the navigation and went to about:blank.

MISS path: The browser will commit to the redirect since the total length of the URL is <2 MiB. We can know the browser commits by trying to read w.document, and if it throws a SecurityError, we will know it is cross-origin and the navigation did not abort.

It is also to be noted that attackers will usually send ~1KB+ of Unicode in order to account for path length differences. It does not require too much precision as compared to regular URL inflation; however, you are still required to calculate some values (such as the padding required in the URI fragment) so that both the HIT and MISS outcomes will have differing effects. Below is a simple representation of how the flow looks:

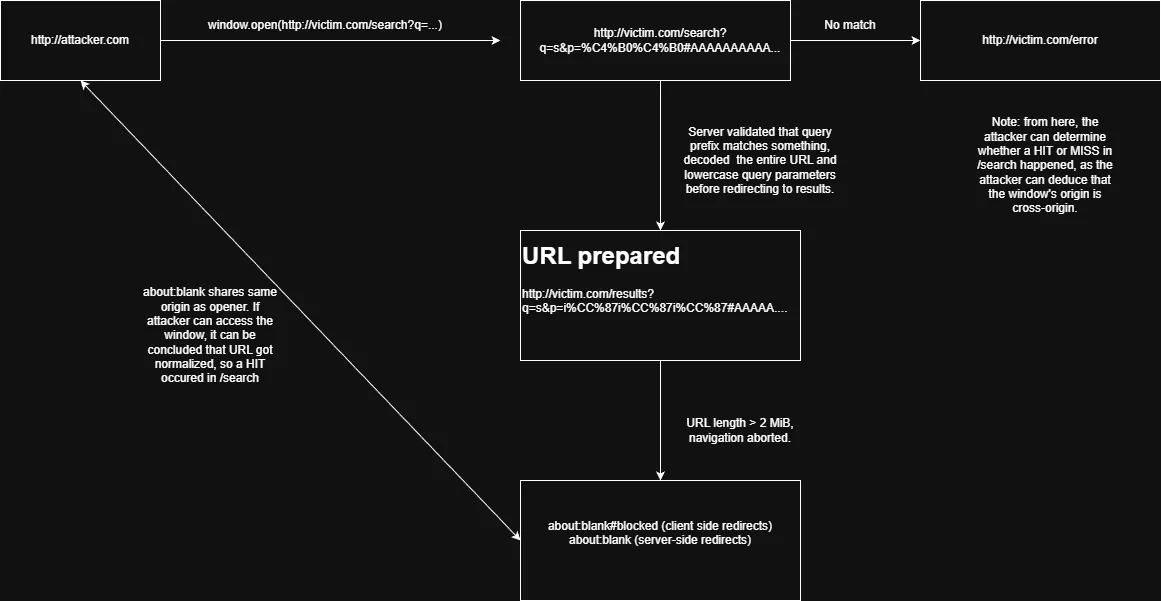

Attack flow diagram: the attacker navigates the victim window to a near-limit URL, the server normalizes on a hit, the redirect target exceeds 2 MiB, and Chromium aborts navigation to about.

The full attack flow: attacker navigates the victim window to a near-limit URL, server-side normalization on a query hit expands the redirect target past 2 MiB, Chromium aborts navigation, and the opener infers a hit from the window remaining same-origin.

Client-Side Normalization Variant (less common but better oracle if present)

In rare cases, an app might normalize a URI fragment client-side (e.g., for case-insensitive anchors) by decoding and lowercasing via JavaScript, then redirecting with location.href. If normalization becomes a branch-dependent path (for example, applying on HIT and not MISS), attackers can put heavy amounts of Unicode characters into the URI fragment so that a HIT will be easily distinguishable no matter the length of the path.

One advantage of the client-side normalization variant is that the popup will either end up cross-origin (easily measurable) or in about:blank with the #blocked URI fragment, which makes it much easier to determine whether it has been hit. Compared to server-side redirects, which only abort the navigation and set it to be about:blank without the #blocked URI fragment.

Server-Side Normalization Variant (more common but server limitations will apply)

More commonly, an app might normalize the URL query parameters by calling toLowerCase() on the entire URL after URL decoding it, so the query parameters will all be lowercased. Although this will be a bit weaker than the client-side normalization variant, as you are subjected to server limitations which might reject overly long URLs, it is much more practical than client-side normalization.

One advantage of the server-side normalization variant is that it is significantly faster than the client-side variant in detecting cross-origin behaviour reliably (750ms for server-side HIT, 1500ms for client-side variant HIT).

Example PoC

You are able to find the Proof of Concept for this XS-Search oracle in my GitHub (https://github.com/randomguy6407/xssearch-normalization). It includes demo-server.py and the public folder, which contains the necessary HTML + JS code to simulate a cross-origin side channel leak between 2 localhost websites.

So far, I believe that this will only work on Chromium-based browsers. For example, Microsoft Edge has this issue since it is a Chromium browser. However, Firefox outright blocks navigation by throwing a DOMException error when trying to set location.href. Furthermore, from my testing, if you try to visit 'http://example.com#' + 'A'.repeat(1_048_554) via location.href or window.open (increasing the A count by 1 more restricts you, throwing a DOMException: 'An invalid or illegal string was specified' when using it via window.open()), the browser will simply crash.

An interesting thing is that, when using Firefox ESR, the entire browser crashed instead of just the tab spawned by window.open() crashing. However, using Firefox for Windows made it so the tab spawned by window.open() shows the tab crash reporter, and it is also in about:blank. I do not think you can do anything meaningful with this, as the attacker will be met with a DOMException: 'Permission denied to access property "document" on cross-origin object', despite the tab crash reporter supposedly being in about:blank.

For Safari, this is also not exploitable since I believe Safari handles URI fragments differently. Even by placing 10 million characters in the URI fragment, the website loaded normally. Note that in the Safari I tested using location.href, the omnibox did not show any URI fragments. Unfortunately, as I do not own an Apple device, I could not test this further. (I was using BrowserStack’s free plan.)

Note: Firefox 147.0.3 for Windows and Firefox ESR 140.5.0 in WSL were used for this testing.

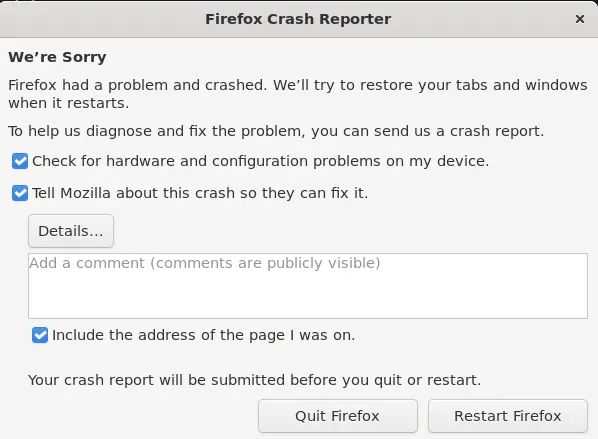

Firefox ESR crash dialogue shown after the oversized URL navigation.

firefox esr crash dialogue

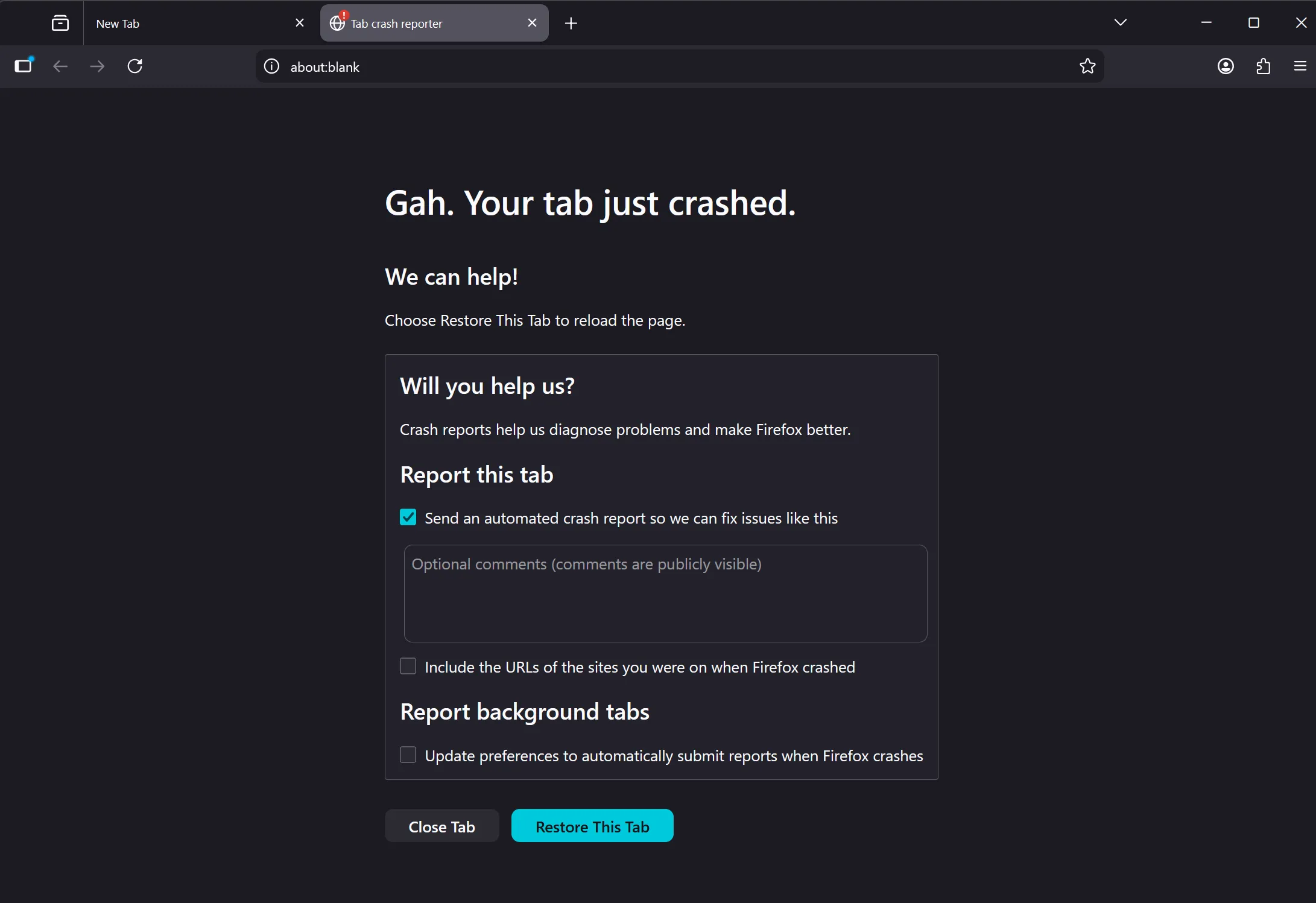

Firefox tab crash reporter in the window spawned by window.open().

firefox window tab crash (contents of document cannot be accessed due to aforementioned error)

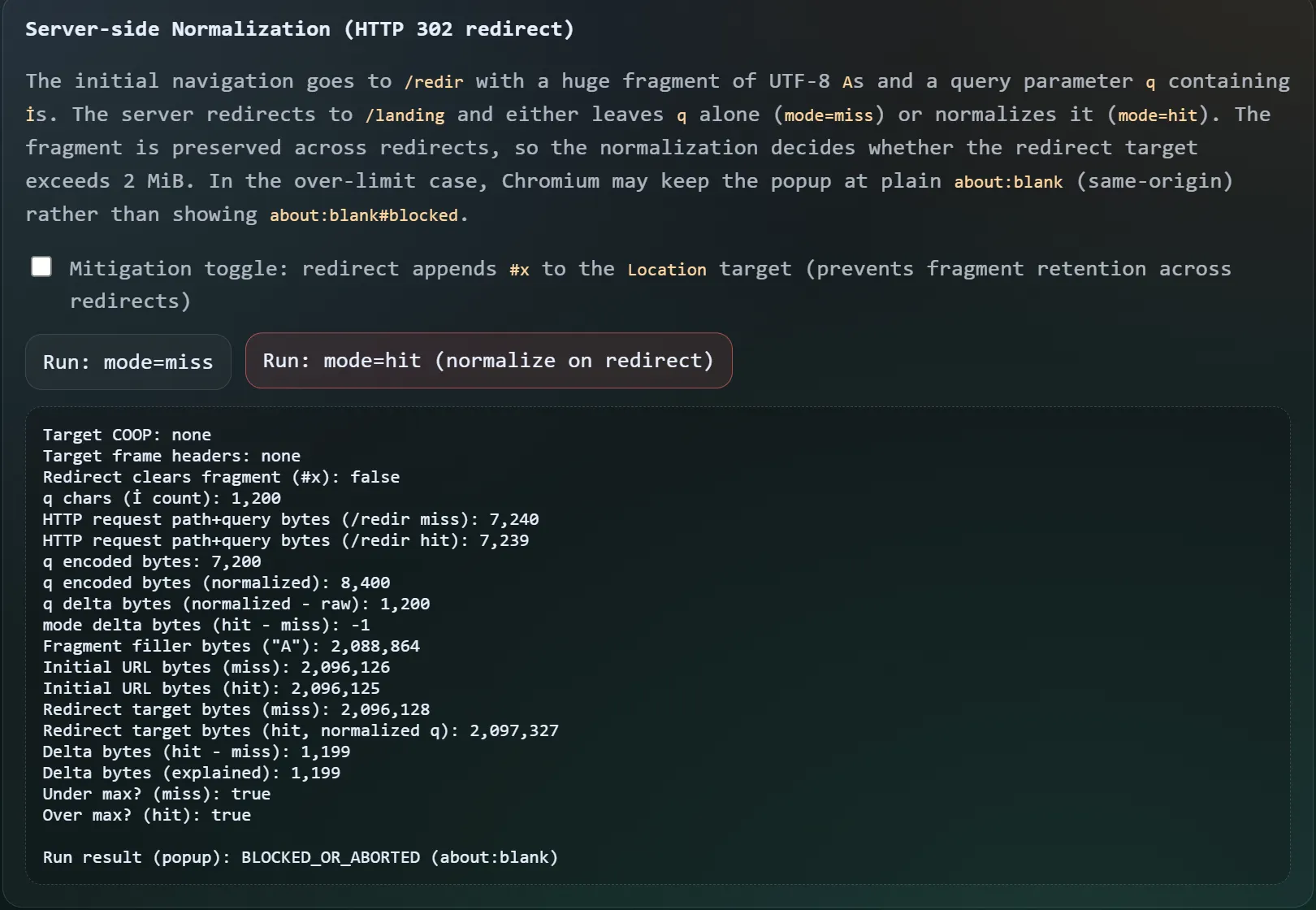

Server-side proof of concept running with mode=hit, showing the popup&#x27;s final location as about.

Server-side proof of concept with mode=hit, a popup will open with the final location being about:blank

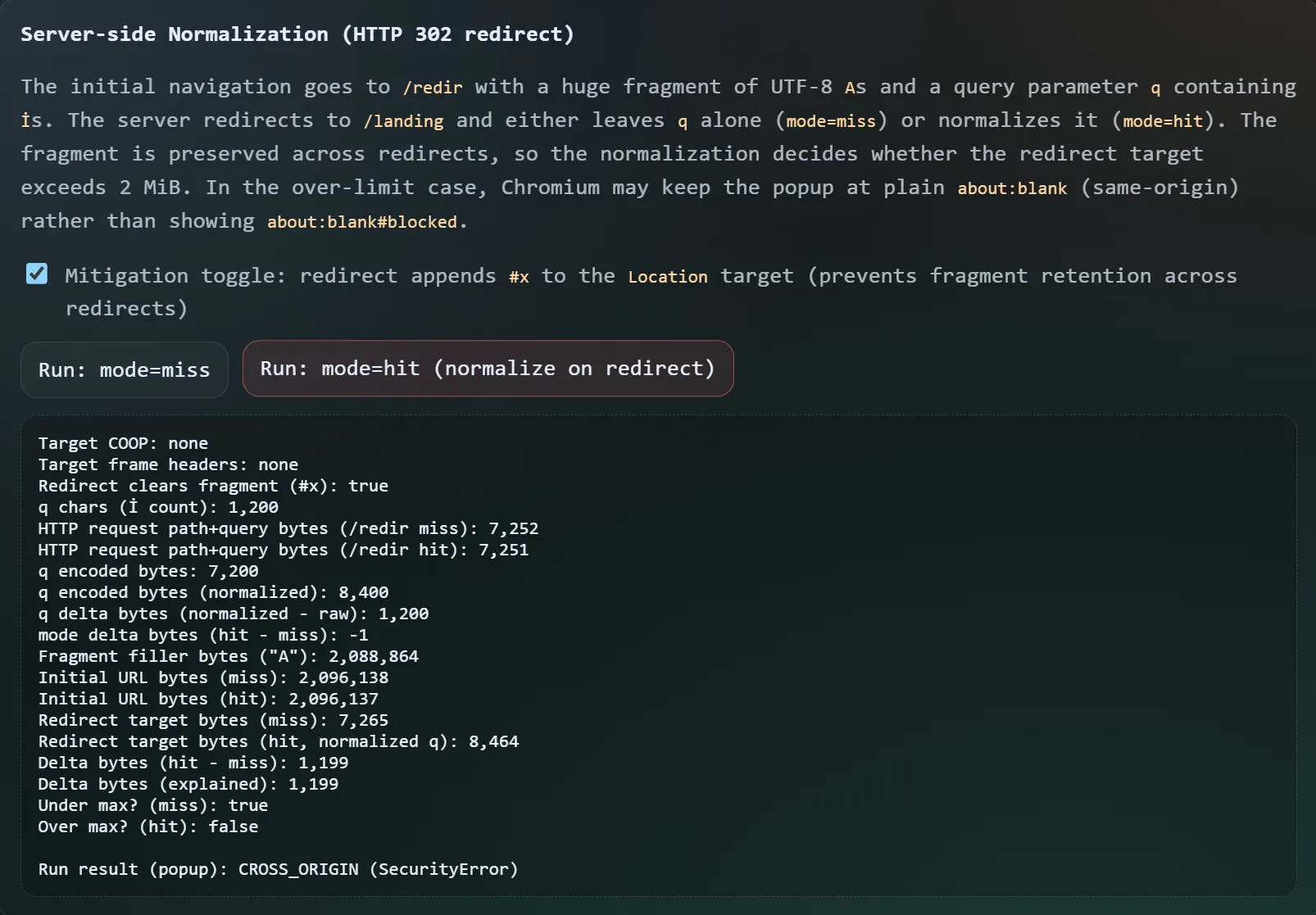

Server-side proof of concept with the mitigation applied, appending &#x27;#x&#x27; to the Location target.

Server-side proof of concept mitigation using a redirect with ‘#x’ being appended to Location target.

Mitigations

To mitigate this XS-Search oracle, you can employ several tactics:

1) In the Location header for server-side Unicode normalization, you are able to purge previous URI fragments and prevent them from being carried during the redirect by setting it explicitly. However, do note that this will make anchors non-functional since the user-supplied URI fragments will disappear.

2) Navigation Isolation Policies can also be implemented to prevent this XS-Search oracle by preventing cross-site window.open() navigations from happening, which is what this XS-Leaks technique uses. However, be aware that improper implementation of Sec-Fetch* headers can also break site functionality. To also make sure this is effective, you can combine it with framing protections like X-Frame-Options or Content-Security-Policy’s frame-ancestors. (For example, a cross-site anchor links to your page, but your checks happen too strictly, hence something non-sensitive like reading a page will be blocked.)

3) Avoid branch-dependent Unicode normalization by normalizing before any hit/miss logic and be consistent. Either both responses are returned with their query parameters lowercased, or none of them are returned lowercased. Additionally, you can further protect yourself from the base URL inflation attacks simply by making both endpoints return the same path length and URL parameter length.

An example of the fixed code using number 1 and 3 mitigations:

const stuff = ['secret', 'secrets', 'token']
app.get('/search', (req, res) => {
  const search = req.query.q; // /search?q=secret
  let queryString = req.originalUrl.split('?')[1] ? `?${req.originalUrl.split('?')[1]}` : '';
  // normalization happens before HIT / MISS logic (mitigation number 3, however we did not use the mitigation of making both return the same path length)
  // In theory this should be vulnerable, but since there's no differing logic (both HIT and MISS gets the querystring to be lowercased), it is hence not vulnerable.
  try {
    queryString = decodeURIComponent(queryString).toLowerCase();
  } catch (e) {
    res.status(400).send('Malformed Query String');
    return;
  }
  // URL fragments are appended to overwrite whatever the user sent to eliminate both the oracle we discussed, as well as the underlying URL inflation technique documented in xsleaks.dev (mitigation number 1)
  if (stuff.includes(search)) {
    res.redirect('/result' + queryString + '#' + 'anything_for_clientside');
  } else {
    res.redirect('/404' + queryString + '#' + 'anything_for_clientside');
  }
});
